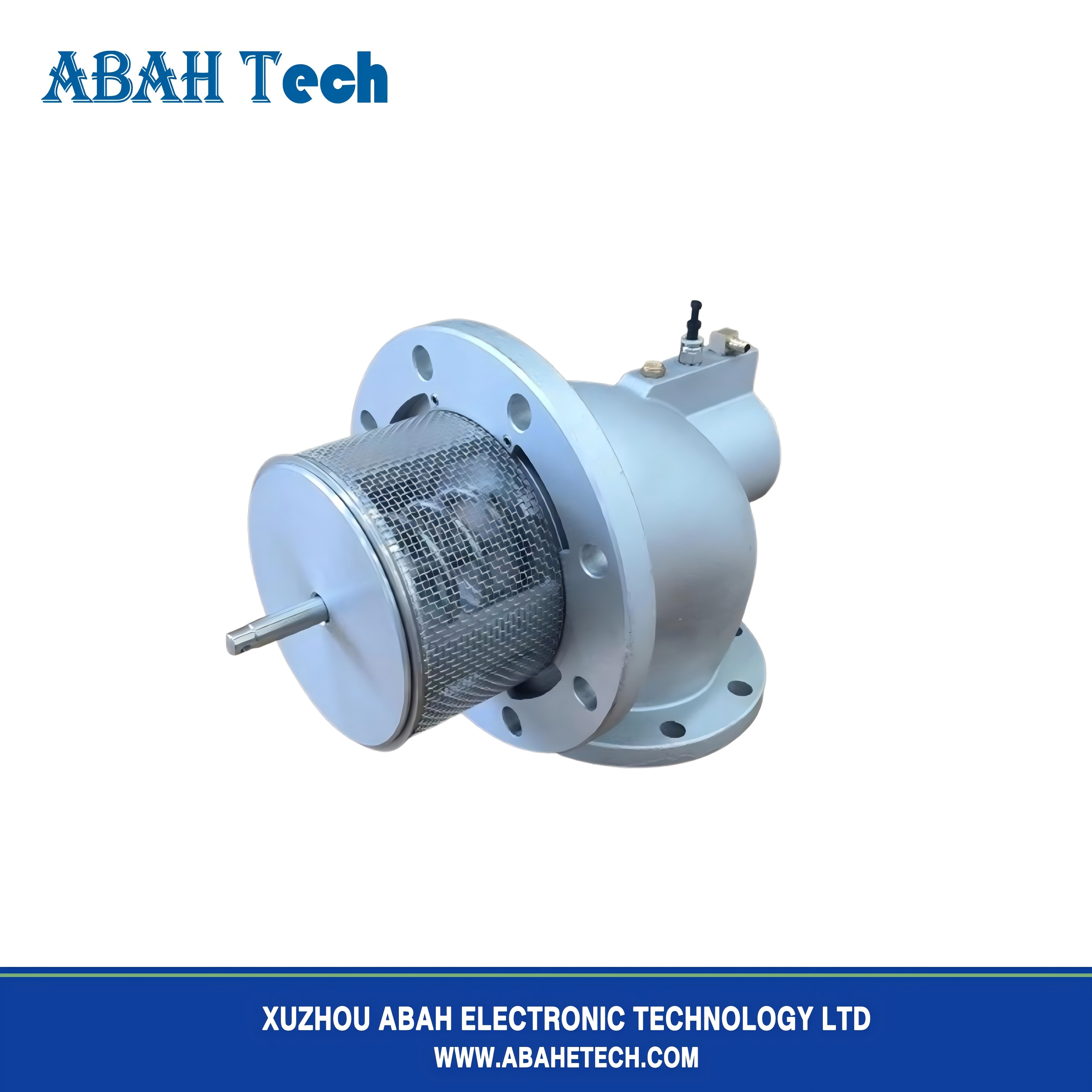

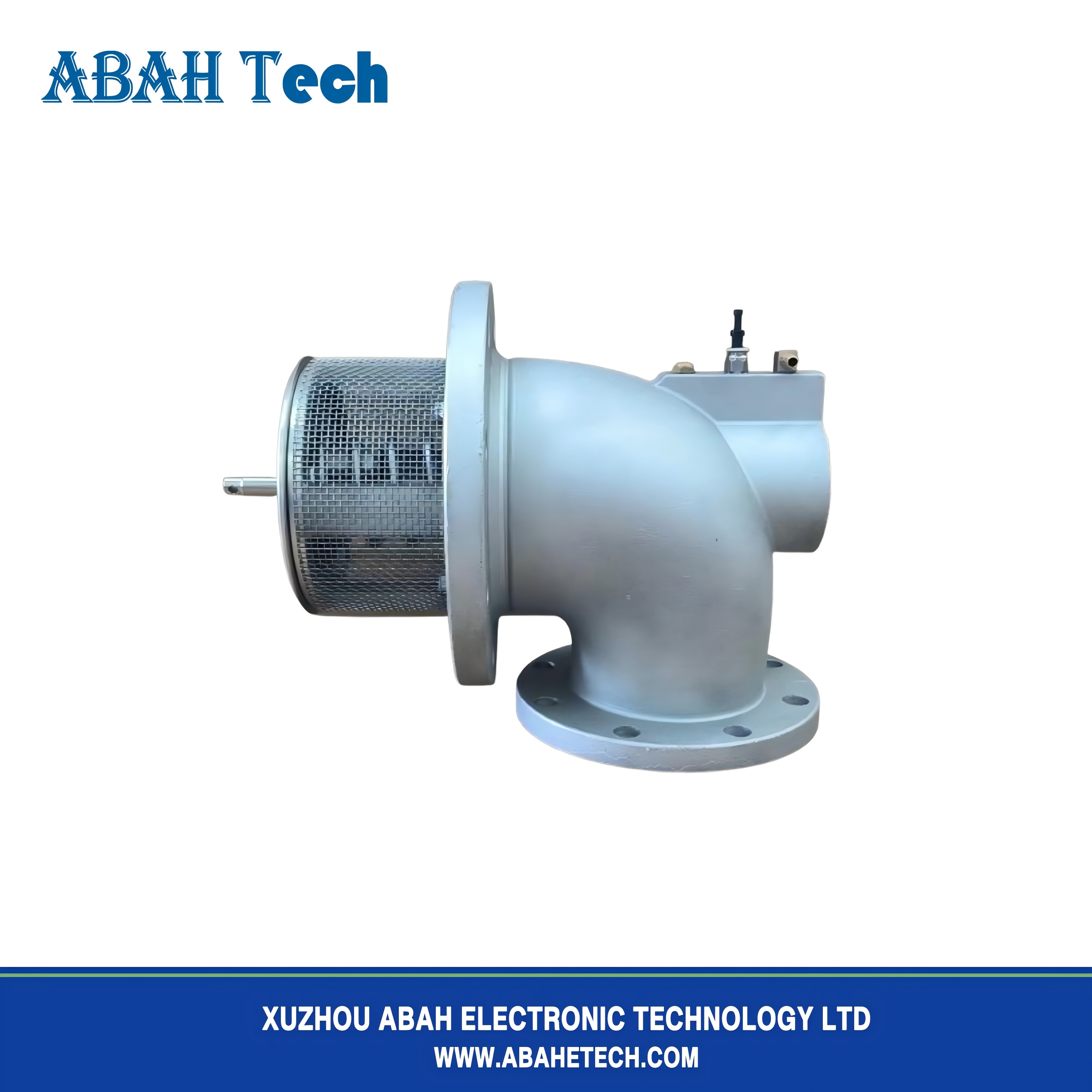

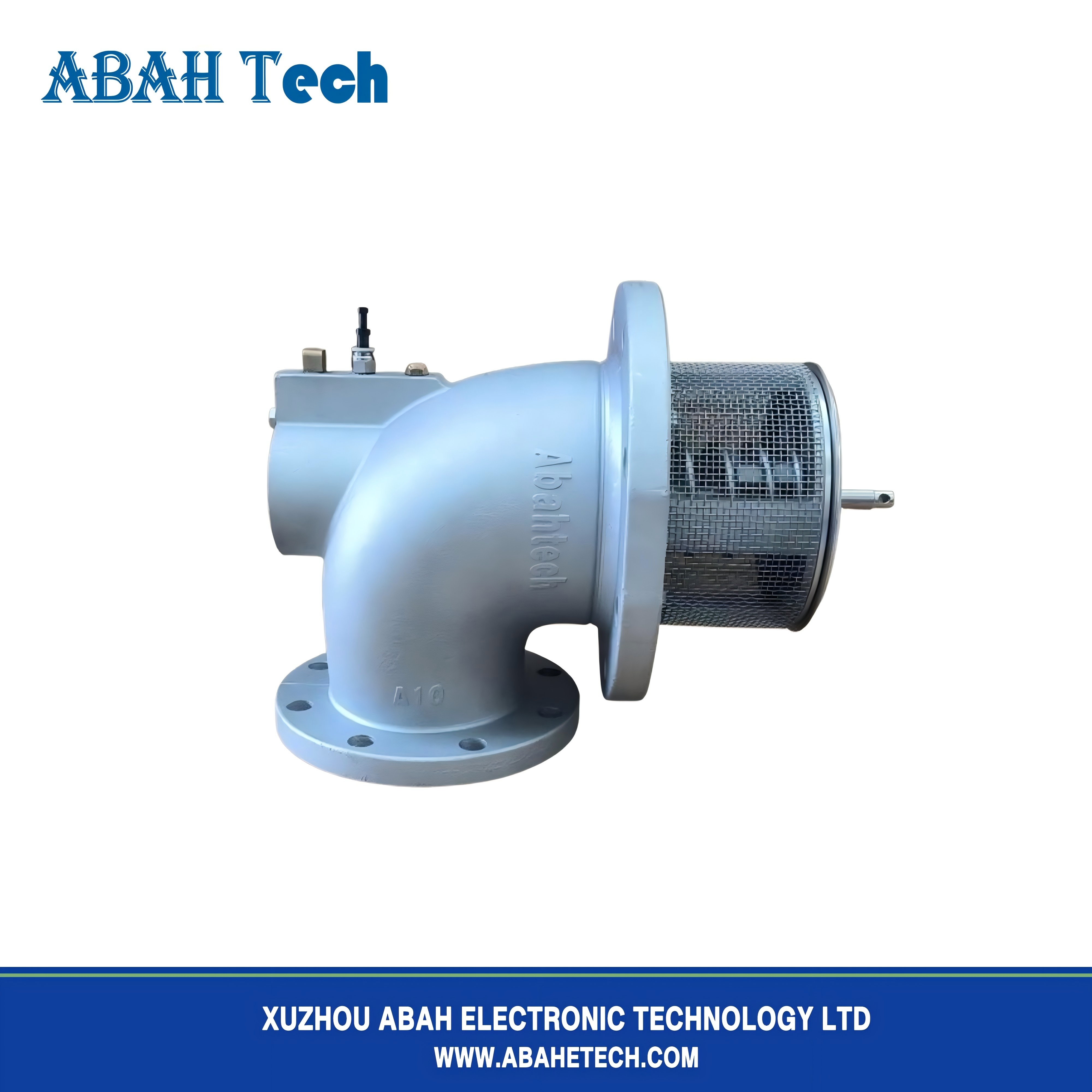

ABAH TECH Pneumatic Foot Valve
It is designed for use with a wide variety of products and features a readily removable spring housing assembly and a pneumatic actuator that can be serviced without removing the valve from the tank. The valve body is constructed of aluminum and features a shear section which meets break-away requirements A heavy mounting flange is provided to insure a flat gasket surface, and a jack screw is included in the event of an air system failure.
The valve features an interlock system for sequential actuation of other components or indicator signals. A stainless steel screen prevents objects in the tank from entering the piping. The Maximum Operating Pressure is defined as the maximum tank pressure that valve can open against w/ given air-line pressure. Maximum Operating Pressure is 21 psi with 80 psi line pressure and 27 psi with 100 psi line pressure.
