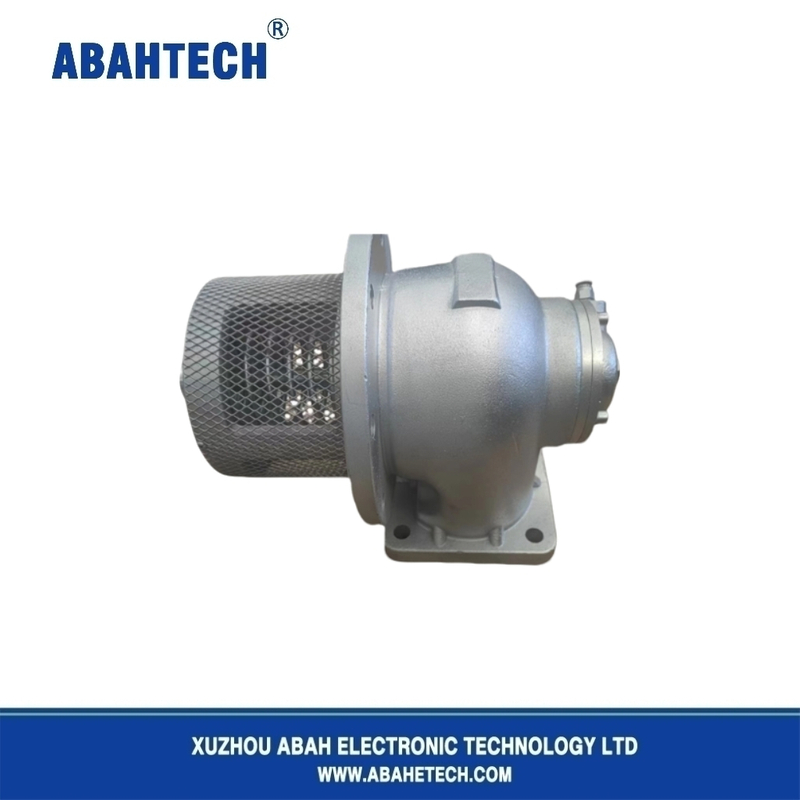

Type 2 stainless steel 4 inch square flange pneumatic foot valve: |
Structure: | 90° emergency cut-off valve. 90° valve body design. |
Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
Material: | Stainless steel |
Type 2 items as optional: |
FV02-100PAF2 | Internal cylinder opening mode, discharge diameter: Ø100mm |
Technical Specifications: |
Nominal diameter： | DN100（4″） |
Nominal pressure： | 1.6MPa |
Suitable Medium： | Dangerous chemicals |
Working temperature range under special working conditions： | -60℃ ~ 250℃ |
Function & Feature
1,Air cyliner can be dismantled independently, it is convenient for maintain.
2,It can be opened by manual way, when pneumatic is not available or air supply failure.
3,Aluminum surface deal with oxidation treatment.
4,Conform to european standard and get the ADR certificates.
