| Quantity: | |
|---|---|

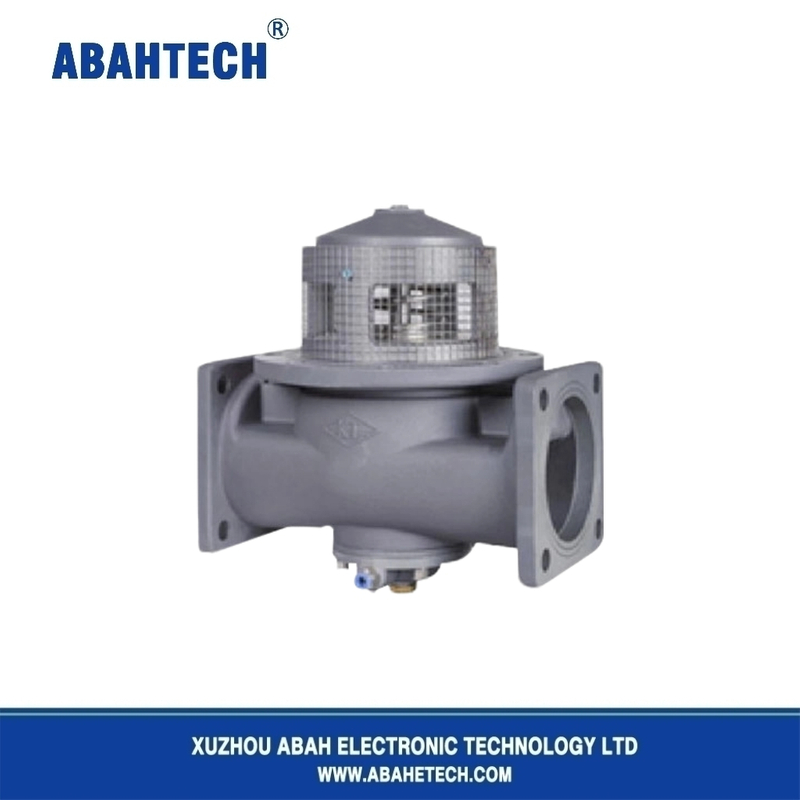

Type 6 aluminum 4 inch T type pneumatic square flange bottom valve: | |
Structure: | 90° emergency cut-off valve. 90° three-way valve body design. |
Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Working Method； | pneumatic |
Item 6 items as optional: | |
Item No. | Description |
FV828-100F2 | Internal cylinder opening mode, discharge diameter: Ø100mm（4''） |
Specifications: | |
Nominal diameter： | 3" 4" |
Nominal pressure： | 0.6MPa |
Installation method： | Flange type |
Suitable Medium： | Diesel, gasoline,oil |
Working temperature range： | -20℃ ~ 50℃ |
Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
Function
1,Air cyliner can be dismantled independently,it is convenient for maintain.
2,T type three way structure,it can directly connect the unloading and loading on the two sides.
3,Aluminum surface deal with oxidation treatment.
Packaging detailed:
1.Carton packing
2. wooden packing
3. as customer 's requirement
* Hydrodynamic Body
Design and high lift poppet minimizes pressure drop to give maximum flow rate.
* External Shear Groove
Meets the standard requirements to limit product spillage in the event of an accident.
* Manual Opening Device
When need to emergency discharging, the pneumatic control is useless, it can be opened by manual way.
* Easy-Installment
The size of the valve is more smart, is suitable for the smaller space's demand.
* Easy Servicing
Allows the air cylinder piston to be replaced without removing the valve from the tank pipe work.
