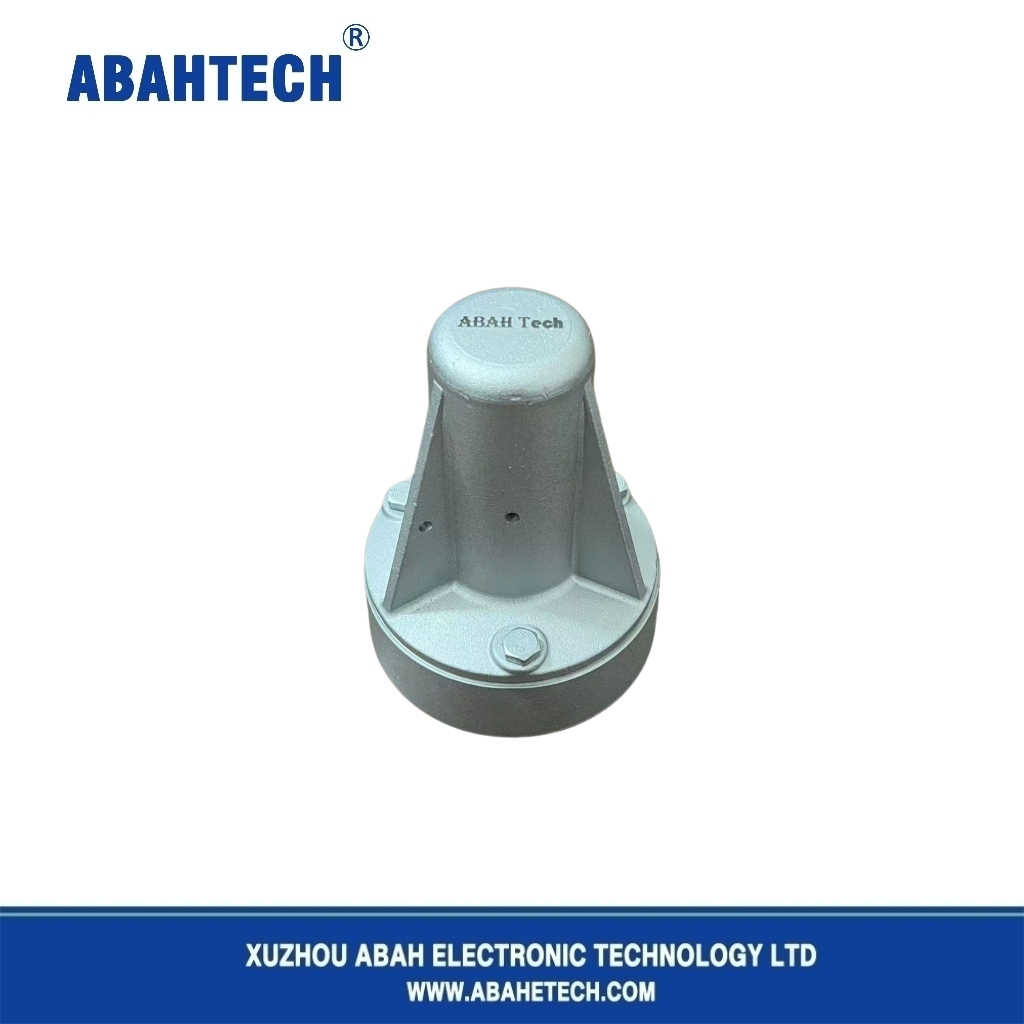

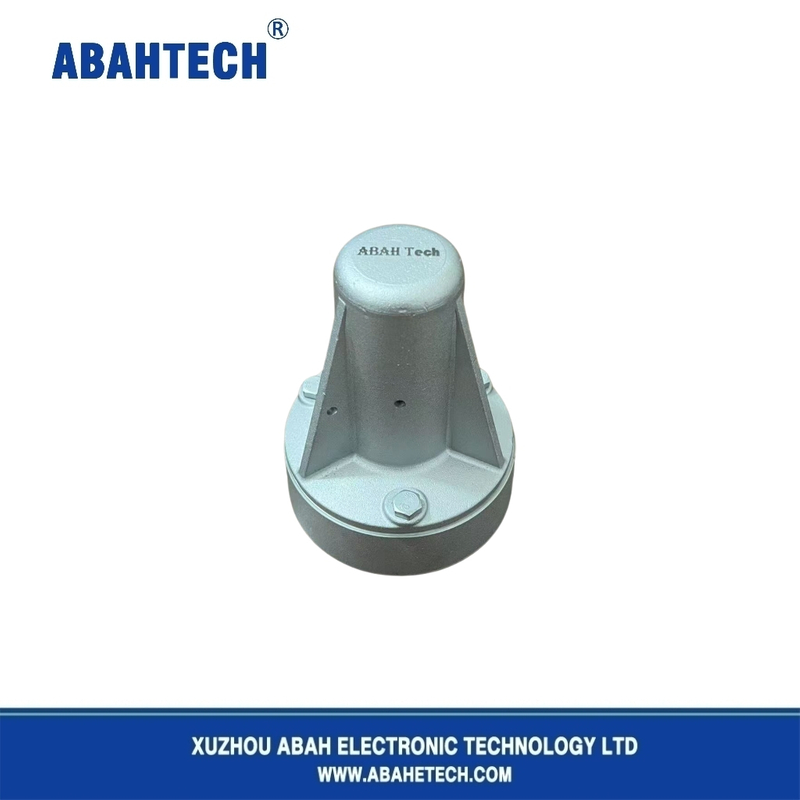

When the powder tanker outputs or inputs materials, if the pressure in the tank exceeds the set pressure, the safety valve will open automatically, so as to avoid the loss caused by excessive pressure or vacuum in the tank.
Standard:
GB18564.1-2006
Material:
Cast aluminum alloy
Type 1 items as optional:
Item No.
Description
SV06-50A
Nominal diameter Ø50, thread NPT 2"
Technical Specification:
Exhalation pressure:
200~350KPa
Installation mode:
External thread type
Operating temperature range:
-20℃ ~ 200℃
Remark:
The sealing material shall be replaced every 6 months
