Manhole Cover Breathing Valve(Type2)

loading

Manhole Cover Breathing Valve(Type2) Manhole Cover Breathing Valve(Type2)
Manhole Cover Breathing Valve(Type2) Manhole Cover Breathing Valve(Type2)

loading

Manhole Cover Breathing Valve(Type2)

Availability:
Quantity:
Inquire Add to Basket
Type:fuel tanker manhole cover breathing valve
Outlet Opening Pressure:+6~+12kpa
Inlet Opening Pressure:-2~-4kpa
Flow Rate:600L/min
Material:aluminum alloy,stainless steel
Installation:threaded,flanged
Temerature range:-20°C~+50°C
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Fuel Tanker Breath Valve P/V Vent Valve Inner Breath Valve for Fuel Tanker Manhole Fuel Tanker Exhaust Valve Manhole Cover Breathing Valve Dixon Type PV VENT Valve Stainless Steel PV Vent Valve abahtech
Product Description

2022122819450947d4a2d9581744ed8289d5b0f2f06fed

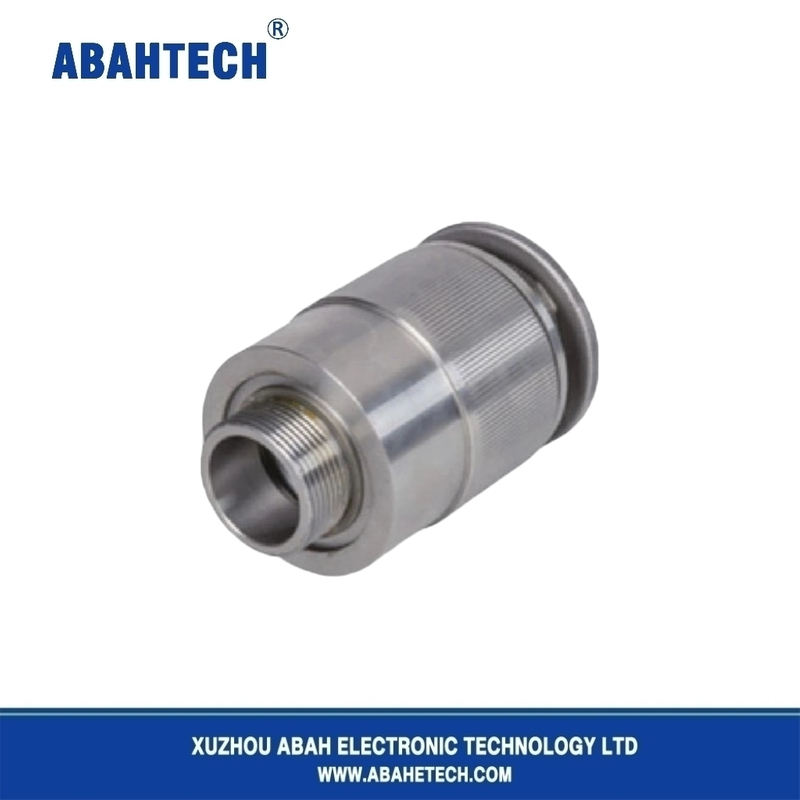

Type 2 Internal breathing valve：

Connection: 1 5/8-12UN external thread connection

With fire resistance, anti-overflow function

Type 2 items as optional:

IB031-30NYS

Nominal diameter Ø30mm, Internal breathing valve,Aluminum alloy

IB031-30PNYS

Nominal diameter Ø30mm, Internal breathing valve,Stainless steel

IB031-40GYS

Nominal diameter Ø40mm, Internal breathing valve，Aluminum alloy

IB031-40PGYS

Nominal diameter Ø40mm, Internal breathing valve,Stainless steel

Technical Specification:

Exhaust pressure :

6~12KPa

Suction pressure :

-2~-4KPa

Ventilation flow:

600L/min

Operating temperature range:

-20℃ ~ 70℃
