Type:semi trailer aluminum alloy wheel rim
Material:steel,aluminum alloy
Type:rim

Drive Wheel:4 - 5 holes
Wheel Hub Diameter:13 - 18 inch
Finishing:black E-Coating, silver painting

Semi Trailer Wheel Rim Steel Aluminum Wheel Aluminum Wheel Rim for Semi Trailer Truck Trailer Tire Rim Semi Trailer Parts China Wheel Rim Supplier

Product Introduction

Wheel rim types	Tubeless wheel rims, Tube wheel rims, Decoumentable rims, Aluminum wheel rims, Rings
Sizes	17.5x6.00 17.5x6.75 19.5x6.00 19.5x6.75 19.5x8.25 19.5x14.00 22.5x7.5 22.5x8.25 22.5x9.00 22.5x11.75 24.5x8.25
Disc thickness option (mm)	11mm, 13mm, 14mm, 16mm
Rim thickness option (mm)	5mm, 6mm, 7mm, 8mm
Colors	Sliver, while, red, black, blue, as requirement.
Optional parts & components	Valve
Package	Fumigated wooden pallets, as requirement
Standards implemented	IATF 16949, ISO9001-2015,

tube steel wheel rim_1

Paremeters

Aluminum Alloy Wheel Rim Series

Size	Bolt hole number	Bolt hole(mm)	P.C.D.(mm)	C.B.D.(mm)	OUTSET (mm)	INSET(mm)
17.5×6.75	6	26.75	245	202	141	120
17.5×6.75	6	26	245	202	141	120
17.5×6.75	6	26	225	176	141	120
17.5×6.75	10	26	225	176	141	120
19.5×7.5	8	24.5	275	221	156	134
19.5×7.5	8	26.75	275	221	156	134
19.5×7.5	10	26	285.75	220	156	134
22.5×7.5	10	32.5	335	281.2	162	138
22.5×7.5	10	26.75	285.75	220.1	162	138
22.5×7.5	10	26	335	281.2	162	138
22.5×7.5	8	32.5R22	285	221	162	138
22.5×7.5	8	32.5	275	221	162	138
22.5×7.5	8	24	275	221	162	138
22.5×8.25	10	26.75	285.75	220	168.5	144.5
22.5×8.25	10	32.5R22	285.75	221	168.5	144.5
22.5×8.25	10	32.5	335	281.2	168.5	144.5
22.5×8.25	10	26.75	335	281.2	168.5	144.5
22.5×8.25	10	26	335	281.2	168.5	144.5
22.5×8.25	10	26	285.75	220	168.5	144.5
22.5×8.25	10	26	285.75	221	168.5	144.5
22.5×8.25	10	32.5	335	281.2	167.5	144.5
22.5×8.25	10	32.5	335	281.2	169	145
22.5×8.25	10	26	335	281.2	169	145
22.5×8.25	10	26.75	285.75	220	169	145
22.5×8.25	10	32.5	285.75	221	169	145
22.5×8.25	10	26.75	285.75	221	169	145
22.5×8.25	10	32.5R22	285.75	221	168.5	143.5
22.5×8.25	10	26.75	285.75	220	168.5	143.5
22.5×8.25	10	26	285.75	220	168.5	143.5
22.5×8.25	8	32.5	275	221	169	145
22.5×9.0	10	32.5R22	335	281.2	177	152
22.5×9.0	10	32.5	335	281.2	177	152
22.5×9.0	10	26.75	335	281.2	177	152
22.5×9.0	10	26	335	281.2	177	152
22.5×9.0	10	26.75	285.75	220	177	152
22.5×9.0	10	26	285.75	221	177	152
22.5×9.0	10	26	285.75	220	177	152
22.5×9.0	10	32.5R22	335	281.2	177	152
22.5×9.0	10	32.5	335	281.2	177	152
22.5×9.0	10	26.75	335	281.2	177	152
22.5×9.0	10	26	335	281.2	177	152
22.5×9.0	10	26.75	285.75	220	177	152
22.5×9.0	10	32.5R22	285.75	221	177	152
22.5×9.0	10	32.5	285.75	220	177	152
22.5×9.0	10	26.75	285.75	220	179	152
22.5×9.0	10	26.75	285.75	220	106	79
22.5×11.75	10	26.75	335	281.2	146	120
22.5×11.75	10	26	335	281.2	146	120
22.5×11.75	10	26	285.75	220	146	120
22.5×11.75	10	26.75	285.75	220	146	120
22.5×11.75	10	32.5	335	281.2	146	120
22.5×11.75	10	26.75	335	281.2	24(Ref.)	0
22.5×11.75	10	26	335	281.2	24(Ref.)	0
22.5×11.75	10	26.75	285.75	220	24(Ref.)	0
22.5×11.75	10	26.75	285.75	220		0
24.5×8.25	10	32.5	335	281.2	168	144
24.5×8.25	10	26.75	285.75	220	168	144
24.5×8.25	10	32.5R22	285.75	221	168	144

STEEL-_1

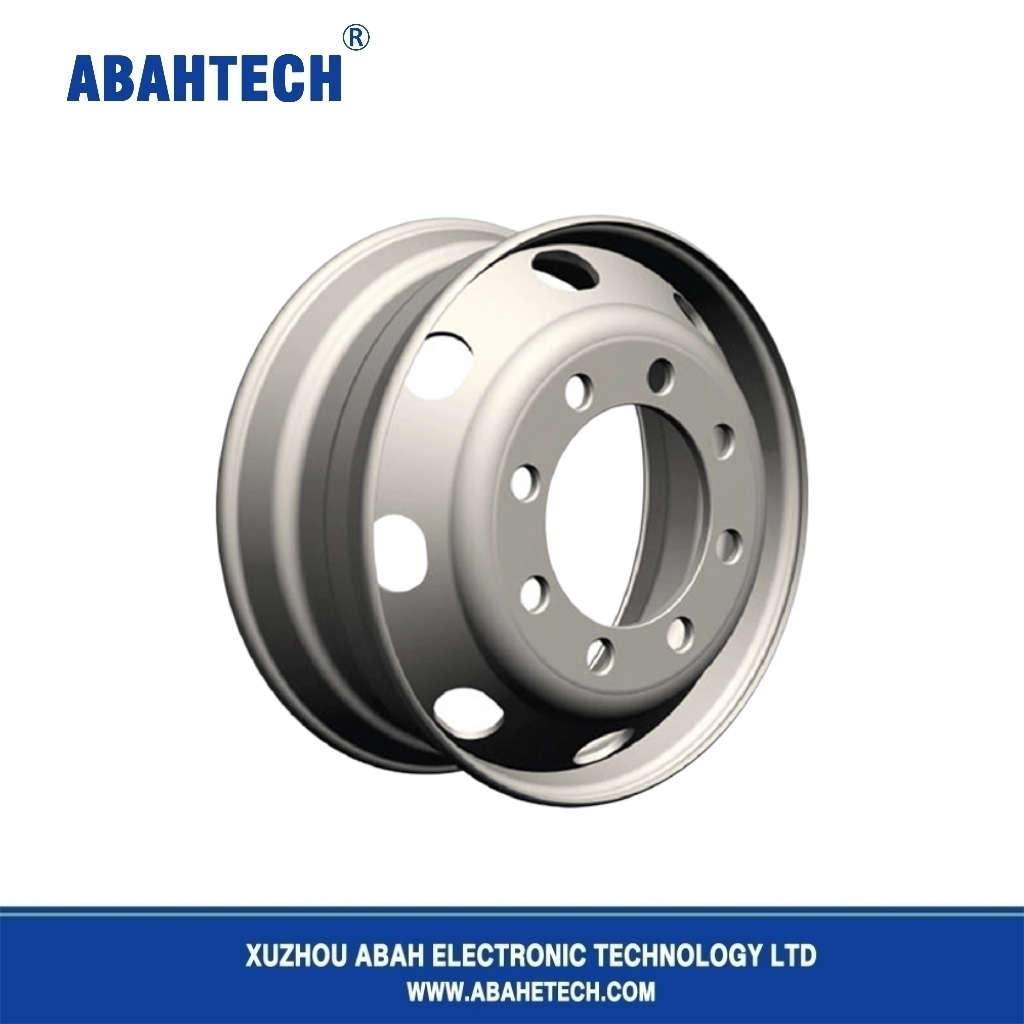

Tubeless Steel Wheel Rim Series

ITEM NO.	SIZE	Bolt			P.C.D.	C.B.D.	Offset
ITEM NO.	SIZE	No.	Dia.	Type	(mm)	(mm)	(mm)
6.00x17.5
RS600175-201	6.00 x 17.5	6	32	SR22	222.25	164	135
RS600175-202	6.00 x 17.5	10	26	SR18	225	176	133
6.75x17.5
RS675175-202	6.75 x 17.5	6	32	SR22	222.25	164	137
RS675175-204	6.75 x 17.5	8	26	0.5X45	275	221	139
6.75x19.5
RS675195-201	6.75 x 19.5	6	32	SR22	222.25	164	135
RS675195-204	6.75 x 19.5	6	32.5	SR22	222.25	164	157
RS675195-203	6.75 x 19.5	8	32	SR22	275	214	139
6.75x22.5
RS675225-202	6.75 x 22.5	6	32	SR22	222.25	164	151
RS675225-209	6.75 x 22.5	8	32.5	SR22	285	221	174
RS675225-206	6.7 x 22.5	10	26	ISO	285.75	220	152
RS675225-211	6.75 x 22.5	10	26	ISO	335	281	177
7.50x22.5
RS750225-209	7.50 x 22.5	8	32.5	SR22	285	221	162
RS750225-203	7.50 x 22.5	10	26	ISO	335	281	165
8.25x22.5
RS825225-217	8.25 x 22.5	8	32.5	SR22	285	221	165
RS825225-207	8.25 x 22.5	10	26	ISO	335	281	165
RS825225-231	8.25 x 22.5	10	27	SR18	335	281	165
9.00x22.5
RS900225-203	9.00 x 22.5	10	26	ISO	335	281	161
RS900225-220	9.00 x 22.5	10	26	ISO	335	281	175
RS900225-222	9.00 x 22.5	10	27	SR18	335	281	175
11.75x22.5
RS1175225-204	11.75 x 22.5	10	26	ISO	335	281	120
RS1175225-205	11.75 x 22.5	10	26	ISO	335	281	70
RS1175225-207	11.75 x 22.5	10	27	SR18	335	281	120
RS1175225-208	11.75 x 22.5	10	27	SR18	335	281	70
RS1175225-209	11.75 x 22.5	10	27	SR18	335	281	0

STEEL-_2

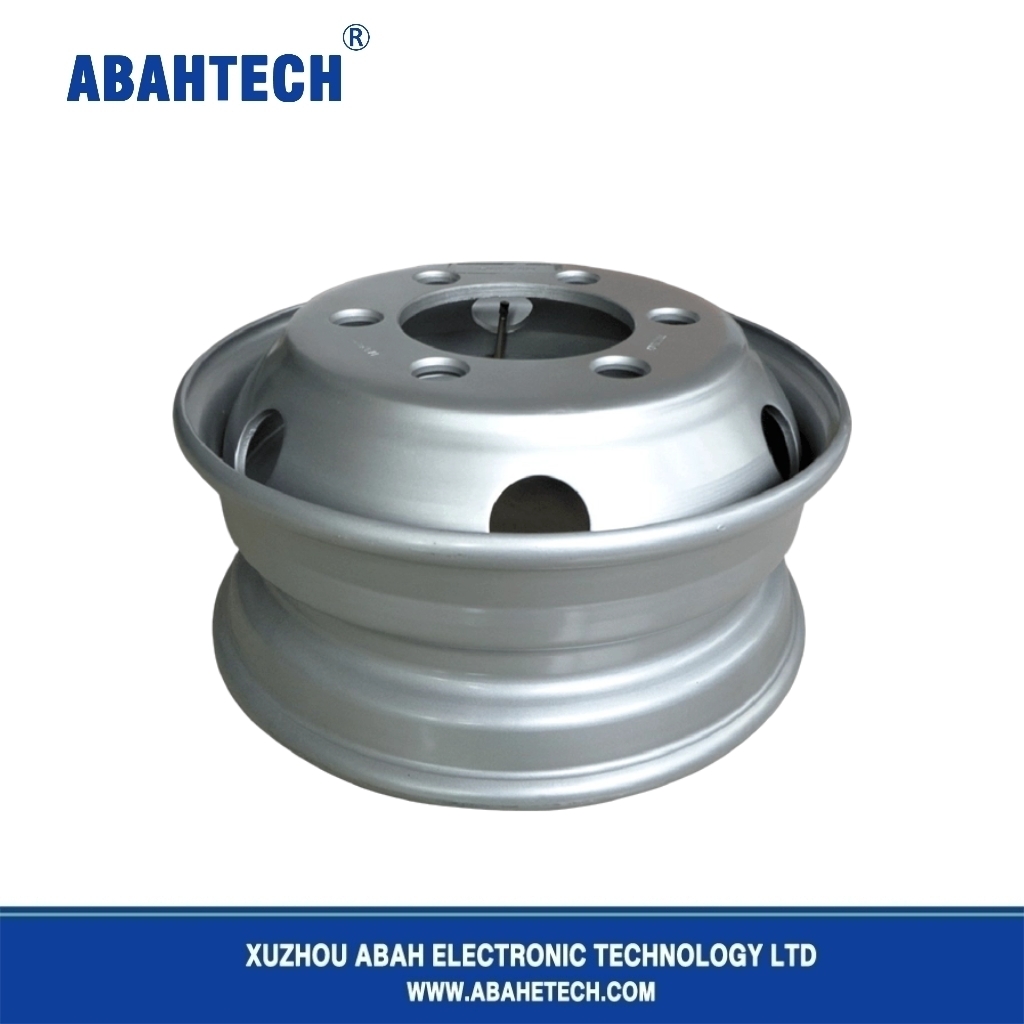

Tube Steel Wheel Rim Series

ITEM NO.	SIZE	Bolt			P.C.D.	C.B.D.	Offset
ITEM NO.	SIZE	No.	Dia.	Type	(mm)	(mm)	(mm)
5.50F-15
RS550150-108	5.50F-15	5	29	SR22	203.2	146	108
RS550150-114	5.50F-15	6	25.5	E	184.15	133	40
5.50F-16
RS550160-101	5.50F-16	5	29	A	203.2	146	115
RS550160-103	5.50F-16	6	17.5	E	170	133	25
RS550160-116	5.50F-16	5	32.5	SR22	203.2	135	135
6.00G-16
RS600160-101	6.00G-16	5	32.5	SR22	203.2	133	20
RS600160-108	6.00G-16	5	32.5	SR22	208	150	127
RS600160-105	6.00G-16	6	20.5	SR22	190	140	-20
6.50-20
RS650200-101	6.5-20	6	32.5	SR22	222.25	164	135
RS650200-103	6.5-20	8	32.5	SR22	275	214	145
RS650200-107	6.5-20	8	27	SR18	275	221	143
7.00T-20
RS700200-102	7.00T-20	8	32.5	SR22	285	222	162
RS700200-107	7.00T-20	10	26	ISO	335	281	162
RS700200-108	7.00T-20	10	27	SR18	335	281	162
7.50V-20
RS750200-101	7.50V-20	8	32.5	SR22	285	222	165
RS750200-107	7.50V-20	10	26	ISO	335	281	165
RS750200-106	7.50V-20	10	27	SR18	335	281	165
8.00V-20
RS800200-102	8.00V-20	8	32.5	SR22	285	222	175
RS800200-105	8.00V-20	10	26	ISO	335	281	175
RS800200-106	8.00V-20	10	27	SR18	335	281	175
8.5-20
RS850200-108	8.5-20	8	32.5	SR22	285	222	175
RS850200-106	8.5-20	10	26	ISO	335	281	175
RS850200-107	8.5-20	10	27	SR18	335	281	175
8.5-24
RS850240-102	8.5-24	10	26	ISO	335	281	180
RS850240-101	8.5-24	10	27	SR18	335	281	180
