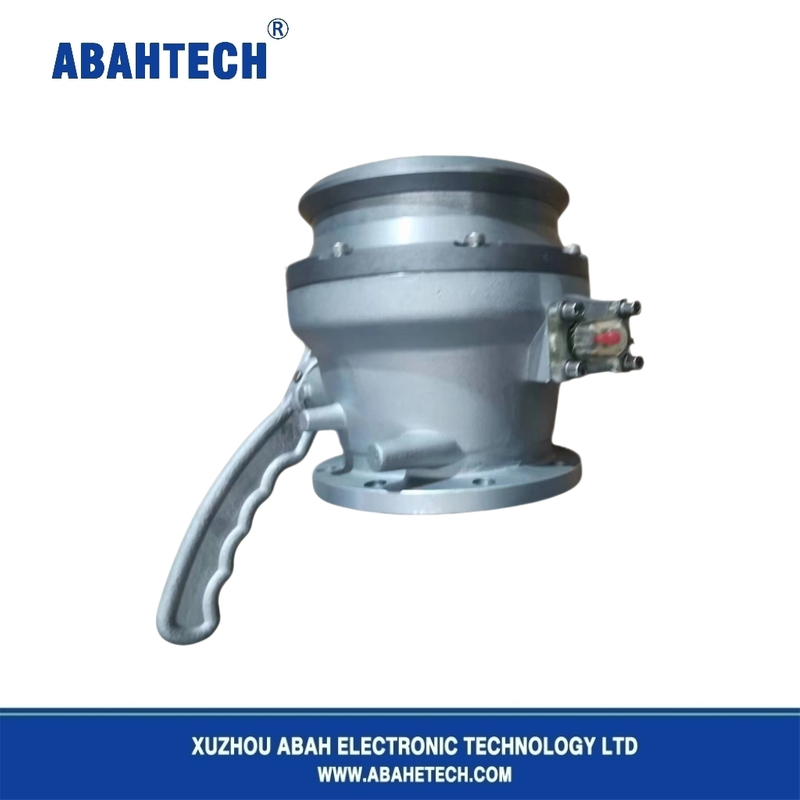

Type 2 aluminum API adaptor valve |
Standard: | GB18564.1-2006 |
Type 2 items as optional: |
XYF05-100P | With two gears, no sight glass |
Parameters: |
Size: | DN100（4″） |
Nominal pressure: | 0.6MPa |
Opening mode: | Manual |
Applicable medium : | Diesel, gasoline |
Working temperature range： | -40℃ ~ 200℃ |
Working temperature range under special working conditions： | -60℃ ~ 250℃ |
Function & Feature
1,Split structure ,it can change valve sealing without remove the valve body.
2,Valve body is oxixdized by hard anodes and is not easy abrasion when connecting with joint.
3,The interface dimensions is conform to standard APIRP1004,it can connet with standard API joint.
4,Pneumatic interlocking valve can be installed to realize interlock control by docking.
