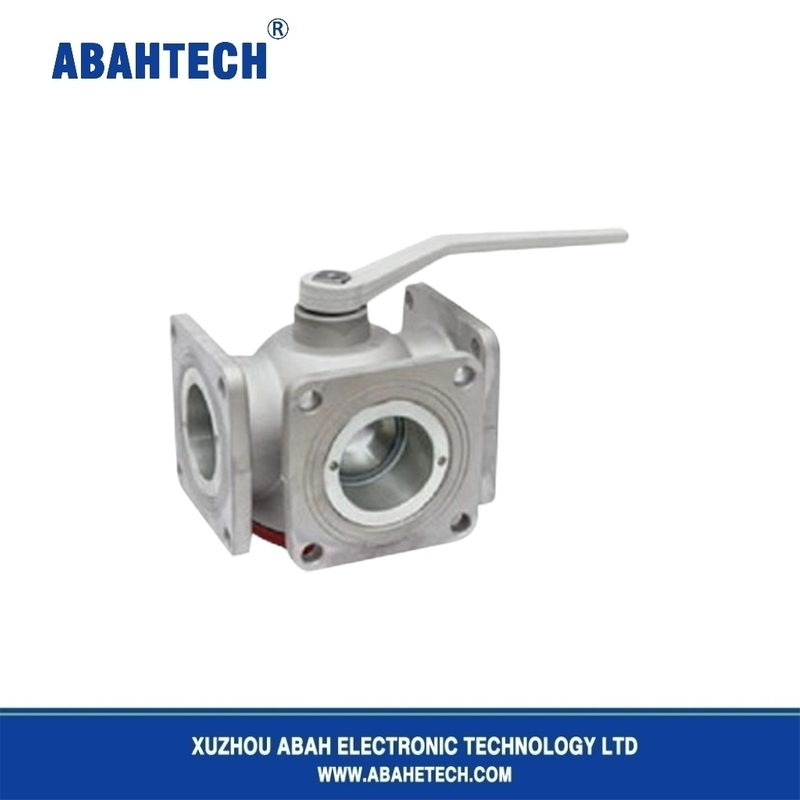

Three-way Ball Valve Series(Type1)

Main body material:

Aluminum alloy

Sealing material:

PTFE and gasoline resistant nitrile rubber

Parameters(Selecting Order Item):

Item number

Nominal diameter

Nominal pressure

A×A

K

Z-d

L

L1

L2

H

Temperature range

KTQ45-10F-DN50

DN50

1.0MPa

120×120

Ø130

4-Ø11 Three-end

170

85

235

185

-20℃ ~ 70℃

KTQ45-10F-DN80

DN80

1.0MPa

140×140

Ø155

4-Ø14 Three-end

200

100

250

204

-20℃ ~ 70℃

Remark 1:

The sealing material shall be replaced every 6 months

Remark 2:

The medium of ball valve is gasoline and diesel
