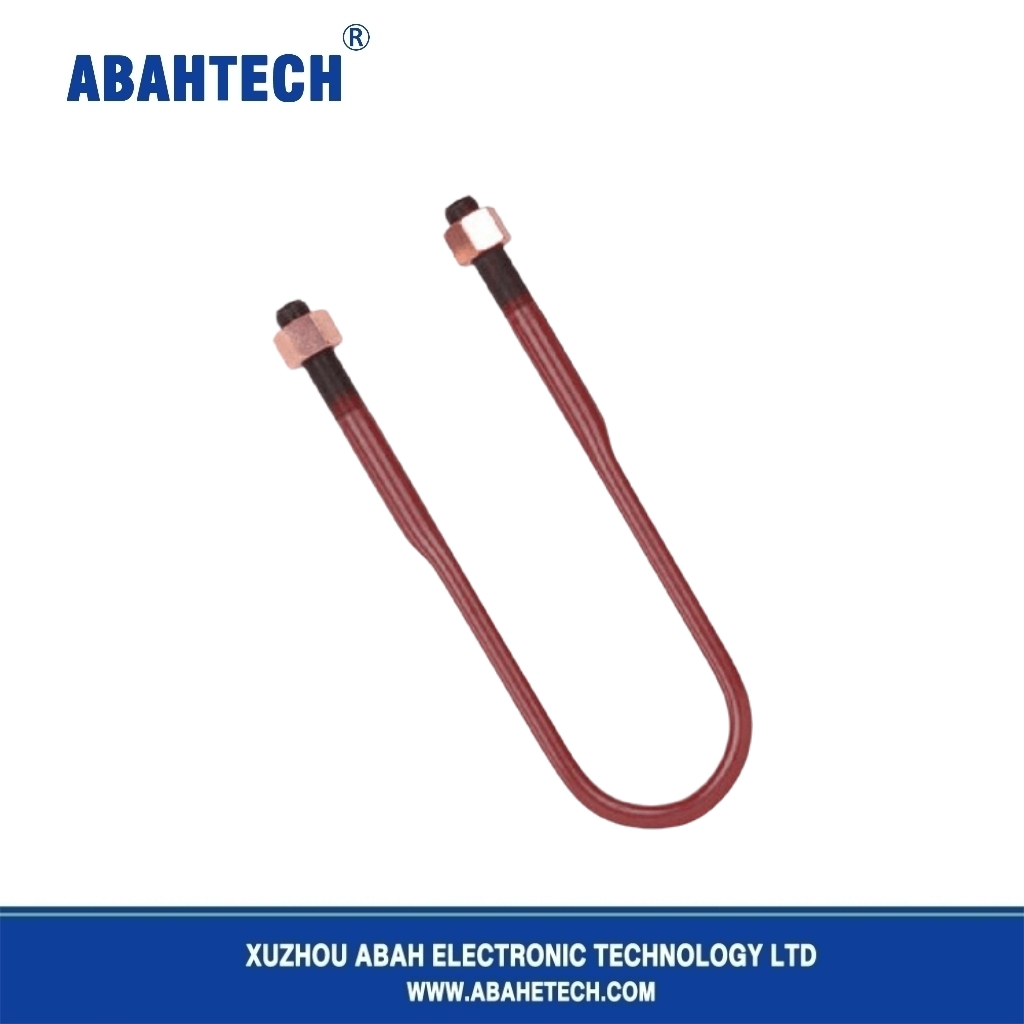

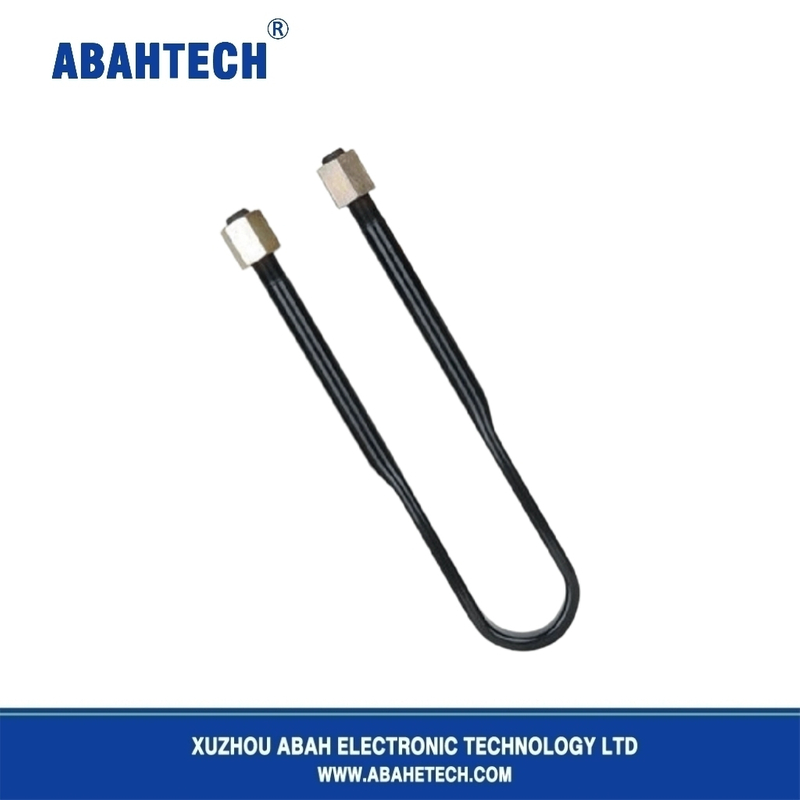

It is mainly used to fix tubular objects such as water pipes or sheet objects such as leaf springs of automobiles.Both ends are threaded and can be combined with nuts.
It's generally used on trucks and trailers to fix the chassis and frame. For example, the leaf springs of automobile suspension are connected by U-bolts.
The main section shapes of U-bolts include: semicircular, square right angle, triangle, oblique triangle, etc.
Types | Type A, B, C, D, E, F, G, H, I, J, K, L |
Material | 42CrMon, 35CrMon, 40Cr, 45#, A3 |
Grade | 12.9; 10.9; 8.8; 6.8; 4.8 |
Brand | Nissian, Isuzu, Scannia, Mitsubishi, Toyota, Renault, BPW, Man, Benz, Mercedes, |
Finishing | Bake paint, Black Oxide, Zinc plated, Phosphate, Electrophoresis, Dacromet |
Colors | Black, Grey, Gold, Red, Sliver |
Model | OEM No. | D | P.T. | B | L | Type |
BPW | 313834010 | 20 | 1.5 | 111 | 205 | TYPE A |
313835100 | 20 | 2.5 | 141 | 370 | TYPE A | |
313840080 | 24 | 3.0 | 81 | 335 | TYPE B | |
313860030 | 36 | 4.0 | 197 | 560 | TYPE B | |
DAF | 738984 | 24 | 2.0 | 81 | 370 | TYPE C |
618398 | 27 | 2.0 | 101 | 480 | TYPE C | |
674908 | 20 | 1.5 | 81 | 370 | TYPE K | |
MAN | 600411157A | 14 | 1.5 | 81 | 125 | TYPE A |
600411157A | 14 | 1.5 | 81 | 125 | TYPE A | |
81413120083 | 27 | 2.0 | 101 | 540 | TYPE D | |
IVECO | 33042177 | 14 | 1.5 | 61 | 132 | TYPE A |
3413124 | 16 | 2.0 | 71 | 180 | TYPE A | |
8132759 | 20 | 1.5 | 101 | 375 | TYPE C | |
42035813 | 24 | 2.0 | 101 | 435 | TYPE L | |
MERCEDES | 3193310325 | 12 | 1.8 | 61 | 115 | TYPE A |
3533310425 | 18 | 1.5 | 61 | 220 | TYPE A | |
3073510125 | 24 | 3.0 | 156 | 390 | TYPE B | |
3043311825 | 20 | 2.0 | 91 | 225 | TYPE K | |
RVE | 5000767738 | 20 | 2.5 | 91 | 226 | TYPE A |
5000540638 | 16 | 1.5 | 71 | 156 | TYPE C | |
5010052270 | 24 | 3.0 | 91 | 400 | TYPE K | |
SAF | 1136010300 | 20 | 2.5 | 141 | 330 | TYPE A |
1402001901 | 16 | 2.0 | 81 | 250 | TYPE B | |
1136030900 | 24 | 3.0 | 101 | 300 | TYPE C | |
SCANIA | 276229 | 22 | 2.5 | 91 | 213 | TYPE A |
365457 | 22 | 2.5 | 103 | 265 | TYPE E | |
253666 | 22 | 2.5 | 91/103 | 250 | TYPE F | |
313648 | 22 | 2.5 | 91/103 | 300 | TYPE K | |
TRAILER | 6502875B | 22 | 2.5 | 91 | 326 | TYPE B |
7000118 | 24 | 2.0 | 151 | 320 | TYPE B | |
VOLVO | 15850944 | 24 | 2.0 | 91 | 310 | TYPE A |
9478350 | 24 | 3.0 | 103 | 415 | TYPE A | |
15909401 | 20 | 2.5 | 101 | 235 | TYPE C |
