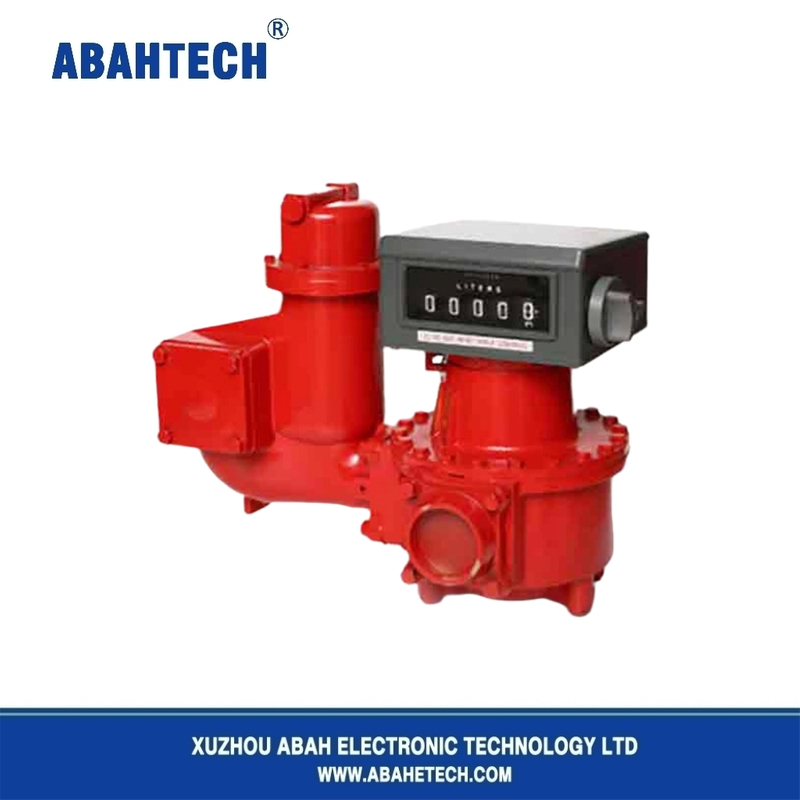

Introducing the PD Flow Meter: A Reliable Solution for Fluid Management
Are you tired of unreliable flow metering solutions? Look no further than the PD Flow Meter. Our state-of-the-art product is designed to provide accurate and reliable flow measurement for a variety of applications, from oil and gas to chemical processing and water treatment.
One of the key advantages of the PD Flow Meter is its precise and consistent measurement capabilities. Our product utilizes positive displacement technology, which ensures that even the smallest volumes of fluid are measured with the utmost accuracy. Whether you are dealing with low or high viscosity fluids, the PD Flow Meter has you covered.
Another benefit of the PD Flow Meter is its versatility. Our product can be calibrated to measure a wide range of fluids, from hydrocarbons to water-based solutions. This makes it an ideal solution for a variety of industries, including chemical manufacturing, pulp and paper, and food processing.
The PD Flow Meter also boasts a number of advanced features that set it apart from other flow meters on the market. These include:
- A compact and lightweight design that allows for easy installation and maintenance
- High-temperature and high-pressure capabilities, making it suitable for use in harsh environments
- Low-pressure drop, which minimizes energy usage and reduces operating costs
- A wide range of output options, including analog and digital signals, allowing for seamless integration with existing systems.
In addition to its technical capabilities, the PD Flow Meter also offers exceptional customer service and support. Our team of experienced engineers and technicians are available to answer any questions you may have about our product, and can help you find the right solution for your specific needs.
So, whether you are looking to improve your fluid management processes or simply need a reliable and accurate flow metering solution, the PD Flow Meter is the product for you. Contact us today to learn more about our product and how it can help improve your operations.
Diameter:50mm/2"
Flow Range:38-380L/Min
Volume/Rev.:0.681L
Max.Pressure:10Bar
Accuracy:±0.2%
Repeatability:≤0.05%
Viscosity:30SSU-1,500,000SSU
Measurement:Liter or Gallon
Meter Body:Aluminum
Seal & Gasket:Buna"N";Viton; Teflon for option
Strainer Mesh: 60Mesh
End Connection:Flange, NPT or BSPT etc.
Built-in precision totalizer accumulating to
99,999,999 units,Delivery display 5 digital
Gross Weight:50Kgs
Packaging Size:53*58*53cm
Characteristics:
• Excellent stepless adjusting mechanism allows a micro adjustment of the meter
• High accuracy and repeatability over the widest range of flow; Superior accuracy
at constant flow
• Low maintenance, no metal-to-metal contact in measuring chamber, long life service
• Low pressure loss, a true gravity flow meter
• Accuracy regardless of pressure fluctuations, temperature variation, viscosity
• Choice of aluminum, cast iron and stainless steel materials of construction
 | Model | M-40-1 | M-50-1 | M-50H-1 | M-80-1 | M-80H-1 | M-100-1 | M-100H-1 | M-150-1 | M-150H-1 |
| Size | 40mm / 1.5" | 50mm / 2 " | 80mm / 3 " | 100mm / 4 " | 150mm / 6 " | |||||
| Flow Range | 25-250 | 38-380 | 55-550 | 75-750 | 115-1150 | 130-1300 | 170-1700 | 225-2250 | 300-3000 | |
| (L/Min) | ||||||||||
| Volume /Rev. | 0.309L | 0.681L | 1.839L | 5.102L | 9.507L | |||||
| Max. Pressure | 10Bar/150PSI | 25Bar/350PSI | ||||||||
| Accuracy | ±0.2% | |||||||||
| Repeatability | ≤0.05% | |||||||||
| Standard Measurement | Liter / US Gallon/IMP Gallon | |||||||||
| Viscosity | 30SSU~1,500,000SSU | |||||||||
