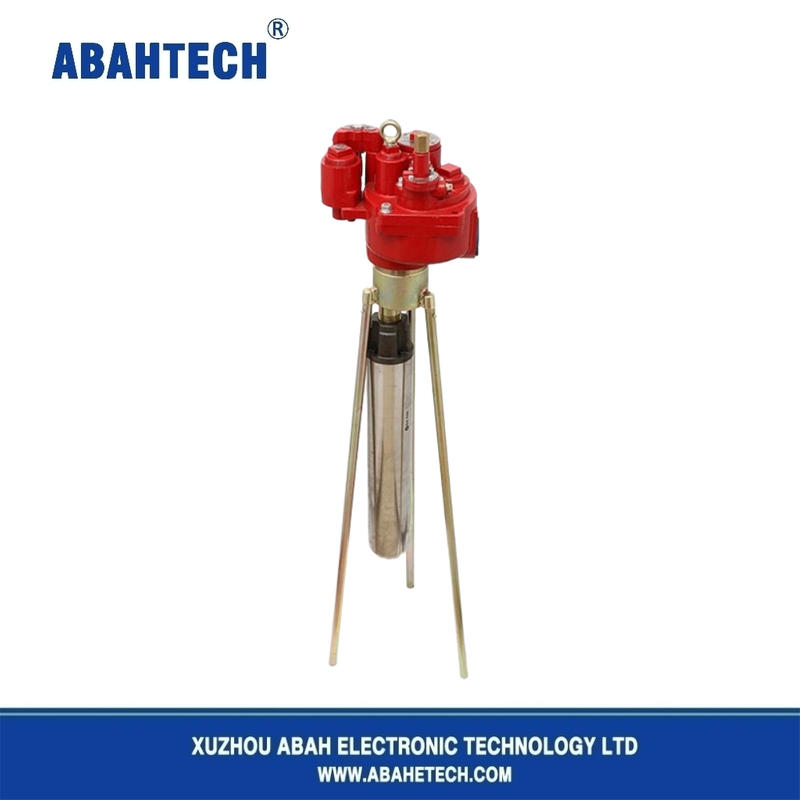

Introducing the Red Jacket Blue Jacket Submersible Pump
As a manufacturer located in China, we are proud to offer the Red Jacket Blue Jacket Submersible Pump. This powerful and efficient pump is designed to help merchants in countries outside of China improve their water management systems. Whether you need to pump water from a well or a pond, this pump will get the job done with ease.
Let's take a closer look at some of the key features and benefits of the Red Jacket Blue Jacket Submersible Pump.
Highly Efficient Design
At the heart of this pump is a powerful and efficient motor that can deliver up to 5 horsepower. This means the pump is capable of moving water quickly and effectively, even in areas with low water pressure. The efficient design also helps to keep energy costs low, saving merchants money in the long run.
Wide Range of Applications
The Red Jacket Blue Jacket Submersible Pump is a versatile tool that can be used in a wide range of applications. It is well-suited for agricultural, industrial, and domestic use. Whether you need to pump water for irrigation, livestock, or other uses, this pump is up to the task.
Durable Construction
We know that our customers rely on our products to get the job done, which is why we have invested in the highest quality materials and manufacturing processes. The Red Jacket Blue Jacket Submersible Pump is built to last, with a rugged construction that can withstand even the harshest conditions.
Easy Maintenance
We understand that time is money, which is why we have designed the Red Jacket Blue Jacket Submersible Pump to be easy to maintain. With simple access points and easy-to-use components, maintaining this pump is a breeze, and downtime is kept to a minimum.
Competitive Pricing
At our manufacturing facility in China, we are dedicated to providing high-quality products at competitive prices. Despite its advanced features and efficient design, the Red Jacket Blue Jacket Submersible Pump is priced affordably, making it accessible to a wide range of merchants.
In Conclusion
The Red Jacket Blue Jacket Submersible Pump is a superior product that combines efficiency, versatility, durability, and affordability. We are confident that it will meet and exceed the needs of merchants in countries outside of China who are looking for a reliable and powerful water management tool. If you have any questions or would like to learn more about this product, please don't hesitate to get in touch with us.
Compact structure, easy installation and maintenance, low noise, smooth operation, long service life.
Built-in check valve, switching valve, safety valve(relief valve) and vacuum valve. The submersible pump can take several nozzles to work at the same time. It is applicable to gasoline, kerosene, diesel, etc.
The submersible pump can avoid oil pumping problem caused by oil gasification. The distance of oil delivery is farther than self sucking pumps.
| Model | QYB-150A | QYB-150 |
| Power | 1.5P | |
| Motor Rated Speed | 2820r/min | |
| Flow Range | 250L/MIN | |
| Working Pressure | 0.22MPa | |
| Environmental Temperature | -25°C-+55°C | |
| Noise Level | ≤68dB | |
| Rated Voltage | AC220V or AC380V | |
| Rated Current | 220V-9.5A 380V-0.35A | |
| Ex-proof Class | Exd IIbT4 | |
| Working Pressure Difference | >34KPa | |
| Fixationthread | NPT 4'' | |
| Inlet | NPT1 0.5'' | |
| Outlet | NPT2'' | |
Electric Submersible Pump with Blue Jacket and Motor
This submersible pump for petrol station has a hermetically sealed motor close-coupled to the pump body. The submersible pumps used in ESP installations are multistage centrifugal pumps operating in a vertical position. It is applicable to fuel supply system for petrol station, manufacture plants and buildings.
| Pump Body | |
| Rated Voltage | AC220V |
| Rated Current | 9.5A |
| Outlet Pressure | ≤0.25MPa |
| Nominal Flow Rate | 250L/m |
| Protection Lever | IP54 |
| Motor | |
| Protection Lever | IPX8 |
| Power | 1.3KW |
| Frequency | 50HZ |
| Rated Speed | 2850r/min |
| Efficiency | ≥0.69 |
| Power Factor | ≥0.92 |
| Noise | ≤68dB |
| Insulation Resistance | Normal State20MΩ Thermal State20MΩ |
| Dielectric strength | 1500V ,1 minute, no breakdown |
