Smart Gas Roots Flow Meter for Accurate Gas Measurement
As a leading manufacturer of gas flow measurement instruments, we are proud to present our Smart Gas Roots (Waist Wheel) Flow Meter. This precision instrument is designed to provide accurate measurement of gas flow, enabling users to better control their gas consumption.
Designed with Durability in Mind
Our Smart Gas Roots Flow Meter is built to last, with quality materials and construction. The device features a cast iron casing, precision gears, and high-strength bearings for reliable, long-lasting performance. The device is also designed to be easy to install, with flanged inlet and outlet connections.
High Accuracy and Precision
One of the most important features of our gas flow meter is its high accuracy and precision. The device features a specially designed, two-rotor system that provides accurate readings even at low flow rates. The meter also has a high-precision counter that ensures accurate measurement of even small amounts of gas.
In addition, our Smart Gas Roots Flow Meter features a form-fitting rotor that minimizes gas leaks and ensures accurate measurement even under varying pressure conditions. The meter is also designed to be resistant to environmental factors that can affect accuracy, such as temperature and humidity changes.
Versatile and Easy to Use
Our Smart Gas Roots Flow Meter is designed to be user-friendly and versatile. It can be used with a wide range of gas types, including natural gas, propane, and air. The device is also designed to be easy to read, with a large, clear display that shows the gas flow rate and total volume.
Our meter also features a range of useful features that make it ideal for a range of applications. The device has a built-in temperature and pressure compensation function that ensures accurate measurement even in harsh operating conditions. It also has a low-power consumption mode that helps to extend battery life.
Built-in Data Management
To help users monitor and manage their gas consumption, our Smart Gas Roots Flow Meter features built-in data management functions. The device can store up to 1,000 meter readings, which can be downloaded to a computer for analysis and reporting. The device also supports remote communication, which allows users to access and monitor data from anywhere.
Applications
Our Smart Gas Roots Flow Meter is ideal for a range of applications, including industrial production, commercial gas distribution, and environmental monitoring. It can be used to measure gas flow in boilers, furnaces, heaters, and other gas-fired equipment. The device is also useful for monitoring gas flow and consumption in commercial buildings, such as hotels, restaurants, and hospitals.
Conclusion
In summary, our Smart Gas Roots (Waist Wheel) Flow Meter is a high-quality instrument that provides accurate and reliable measurement of gas flow. Its durable construction, high accuracy, and versatility make it an ideal choice for a range of applications. Whether you are a gas distributor, industrial producer, or facilities manager, our Smart Gas Roots Flow Meter can help you better manage your gas consumption and save on costs. Contact us today to learn more.

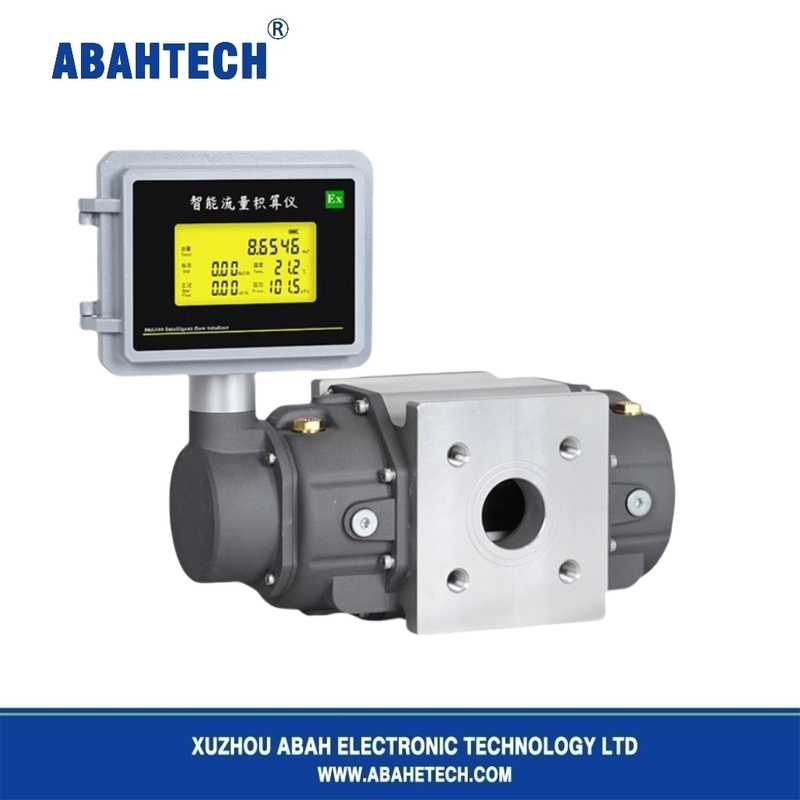

Smart Gas Roots (Waist Wheel) Flow Meter
Roots gas meter, also known as gas waist wheel gas meter, has a metering chamber in the shell. There are one or two pairs of waist wheels that can rotate tangentially in the metering chamber. A pair of driving gears are coaxially installed with the two waist wheels outside the flowmeter shell. They mesh with each other so that the two waist wheels can interact with each other, so as to obtain a gas meter for metering.
Roots gas meters are mainly used for high-precision metering instruments for continuous or
intermittent measurement of gas flow in pipelines. It has the characteristics of high precision, good
reliability, light weight, long life, low operating noise, easy installation and use, etc.
Working Principle
Roots gas meter is mainly composed of shell, conjugate rotor, counting device and other components. A pair of conjugate rotors installed in the metering chamber maintain the correct relative position of the rotor through the precision machined adjustment gear under the action of the inlet and outlet pressure difference of the circulating gas. The best working clearance is maintained between rotors, between rotor and shell, and between rotor and wall panel, so as to realize continuous non-contact sealing. Every time the rotor rotates for one cycle, the gas four times the effective volume of the metering chamber is output. The number of revolutions of the rotor is transmitted to the accumulation indication counter through the magnetic sealing coupling device and deceleration mechanism, so as to display the cumulative volume of the output gas.
Main features:
1）Office meter reading：It uses smart control module, meter reading personnel do not need to go to the door to read the meter,just log on to the gas management website on the computer, choose the community or users who need to read the meter, you can achieve group copy copy, achieve the office read the meter, reduce the work intensity of meter reading personnel, improve work efficiency.
2）Fee payment：Users do not need to go to the business hall of the gas company to pay fees. Users can choose the online recharge platform, APP or third-party platform of the gas company to pay fees.（Need to consult gas company, whether to support the above recharge way）
3）Low power consumption and easy to replace, the battery can last more than 12 months.
4）voltage detection：When the battery undervoltage is detected, the indicator light of the meter will turn red, and the user shall replace the new battery as soon as possible (no. 5 alkaline dry battery, 4). When the battery is exhausted, the indicator light will go off, and the meter valve will automatically close, and the user shall replace the new battery (no. 5 alkaline dry battery,
4).If the lithium battery is used, please contact the gas company when the battery needs to be replaced, and the professional personnel shall replace the battery.
5）Good protective：The controller shell adopts special dustproof and waterproof design with protection grade IP65.
| Name of technical parameters | Unit | DN50 |
| Minimum | m3/h | 2 |
| flow |
| (Qmin) |
| Maximum | m3/h | 65 |
| flow |
| (Qmax) |
| work | Kpa | ≤50 |
| pressure |
| Operating | °C |
|
| temperature | -20~60 |
| Backup | V |
|
| power | 3.6 |
| supply |
|
| maximum | m3 | 99999.999 |
| reading |
| Minimum | m3 | 0.001 |
|
