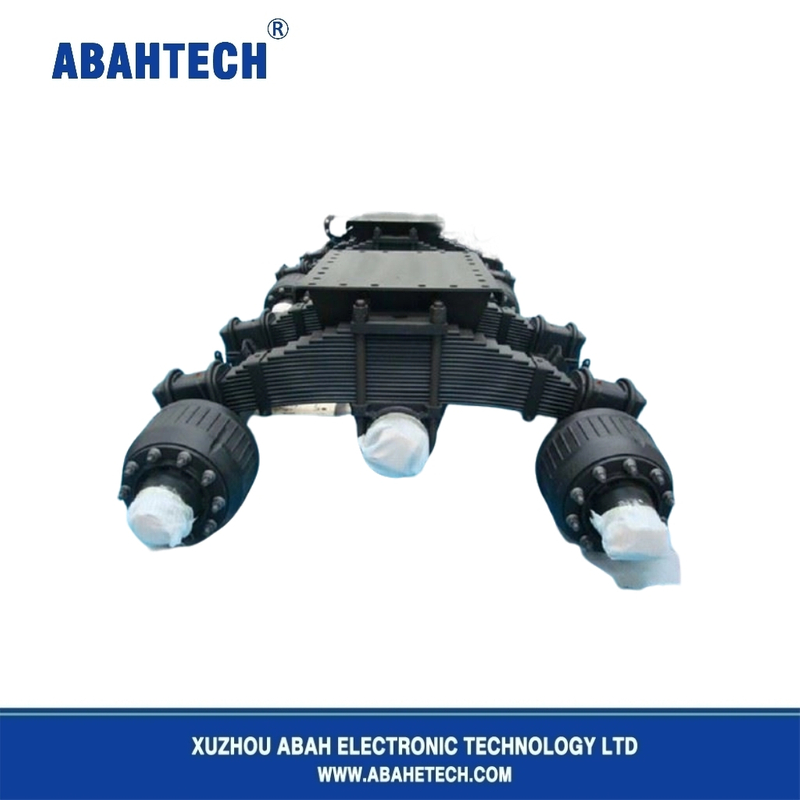

High Mounting Spoke Type Suspension
1.German spindle design which is the widely used in the industry with proven performance
2.Low-alloy machined spindles, friction welded seamlessly, and overall heat treating process
3.Axle stubs and brake hubs are all mould forging, ensure they are more powerful and better steady
4.Special clone-shape design on the axle-shoulders, lessening stress concentration and enhancing anti-fatigue performance
5.Unique design on axle stubs (with a precise declination angel at both ends) to minimize tire wear
6.National and industry standard compliant set components
7.National Automobile Monitor and Inspection Center certified axle shaft that undergoes over 1.2 million times of Fatigue testing and built to meet or exceed national industry standards.
Germany Spoke Type Suspension Parameters
| Type | Max.Capacity (T) | Track(mm) | Brake(mm) | Center Distance of Spring Seat(mm) | Axle Beam(mm) | Center Distance of Brake Chamber(mm) | Stud | P.C.D(mm) | Hole Diameter(mm) | Total Length(mm) | Recommended Wheel | Axle Weight(kg) |
| GS-12 | 12 | 1840 | 420*200 | ≥980 | 150*150 | 420 | 10*M22*1.5 | 335 | 281 | 2158 | 8.0V-20 | 390 |
| GS-14 | 14 | 1840 | 420*200 | ≥900 | 150*150 | 430 | 10*M22*1.5 | 335 | 281 | 2158 | 8.0V-20 | 417 |
| GS-16 | 16 | 1850 | 420*200 | ≥900 | 150*150 | 280 | 10*M22*1.5 | 335 | 281 | 2245 | 8.5V-20 | 548 |
Attention:
1. Optional track length available.
2. Optional ABS and automatic slack adjuster available.
3. All the components are in common use of BPW.
4. Rights of changing product's design and specification are reserved.
Scope of our business:
1.axles (German type axle, American type axle, Spoke axle, Axle without brake)
2.Suspension (Bogie suspension, Spoke suspension, Mechanical suspension)
3.Landing gear (Outboard or inboard)
4.Fifth wheel (2'' 3.5'')
5.King pin (2'' 3.5'')
6.Other axles and related parts (Low bed axle, hub, rims, spring, drum...)
