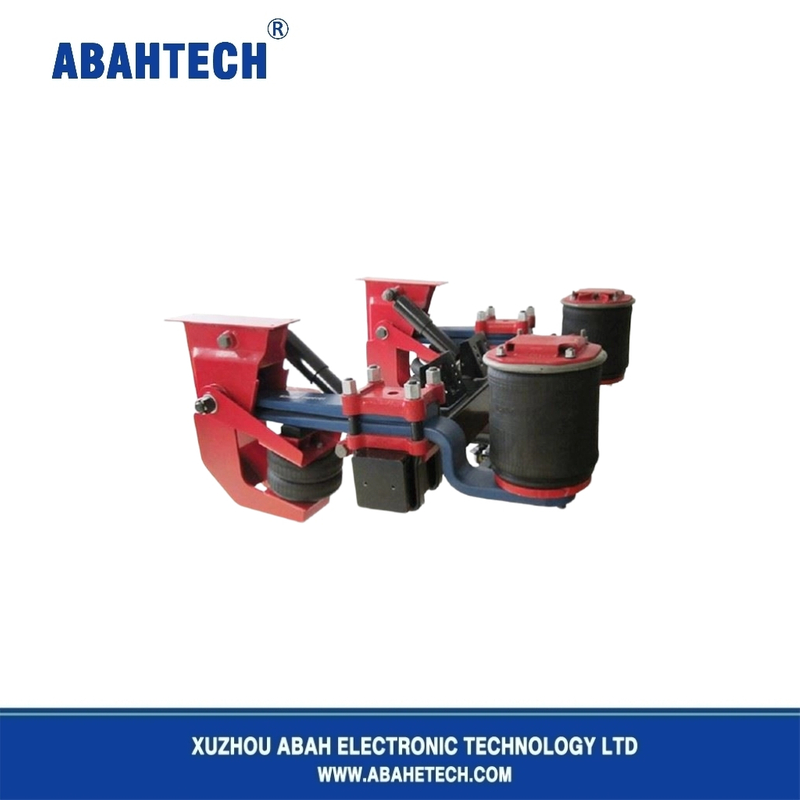

Trailer Parts German American Type Lifting Semi Trailer Air Bag Suspension:
Lifting Type Air Suspension refers to a type of suspension system found in automobiles that utilizes airbags or air springs. This suspension system allows the vehicle's ride height to be adjusted electronically or manually, enabling the vehicle to be lifted or lowered as desired. This system is commonly used in luxury vehicles or those designed for off-road purposes, where the driver may need to adjust the ride height for improved ground clearance or handling. Lifting Type Air Suspension is popular among car enthusiasts and is often used in conjunction with performance upgrades or modifications.
1. Usage: Airbag suspension for truck, full trailer, semi-trailer;
2. Type: American/German Type;
3. Dimension: 12ton/13ton/14ton.
4. Certificate: ISO, TS16949 Certificate
Description:
1. Products Name: Heavy duty trailer 3 Axles Suspension factory made
2. Suspension Track: 1310mm
3. Suspension Hanger Thickness: 6mm
4. Product type: American, Germany and Europe type
5. Two axles and three axles type are available
6.Equalizer Thickness: 12mm
7.Material: Steel
8.Equalizer Pin: 60mm
Heavy Duty Air Suspension Series
Item No. | Capacity | Beam (mm) | FH | Air bag | Inflation pressure | Width of two beam | Wheelbase | Weight |
AS-ST-1101 | 11 | Ф127 / □150 | 370∽550 | Ф320 | 0.7Max | 850∽1200 | 1270∽1400 | ≈235 |
AS-ST-1301 | 13 | Ф127 / □150 | 370∽550 | Ф360 | 0.7Max | 850∽1200 | 1300∽1400 | ≈245 |
Type Semi Trailer Air Suspension Series
Item No. | Capacity | Beam (mm) | FH | Air bag | Inflation pressure | Width of two beam | Wheelbase | Weight |
AS-ST-L1101 | 11 | Ф127 / □150 | 370∽550 | Ф320 | 0.7Max | 850∽1200 | 1270∽1400 | ≈265 |
AS-ST-L1301 | 13 | Ф127 / □150 | 370∽550 | Ф360 | 0.7Max | 850∽1200 | 1300∽1400 | ≈275 |
