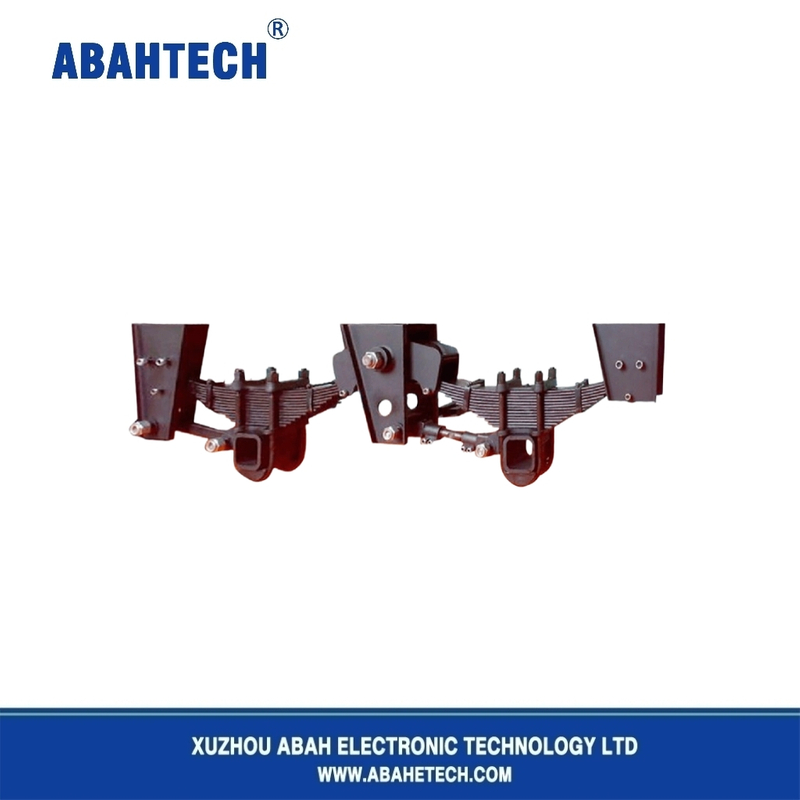

1. Type: overlung/ underslung
2. Leaf Spring: 75mm/ 90mm
3. Axle Beam: round and square/ 5"and6"
4. Axle spacing: 1300m/ 1310mm/ 1360mm/ 1540mm
5. Axle beam size: 5'' and 6'' / 127mm and 150mm
6. One-axle, tandem, tri-axle are optional
Item No.: | Axle Quantity | Axle Beam | L1 | L2 | L3 | L4 | H1 | H2 | Leaf Spring | Capacity |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (T) | ||
PYT-S0201 | 2-axles | □150 | 1315 | 1102 | 445 | 520 | 465 | 440 | 75*13-10 | 13*2 |
PYT-S0202 | 2-axles | □150 | 1360 | 1194 | 445 | 550 | 465 | 440 | 75*13-10 | 13*2 |
PYT-S0203 | 2-axles | □150 | 1232 | 1054 | 445 | 470 | 465 | 440 | 75*13-10 | 13*2 |
PYT-R0201 | 2-axles | ○127 | 1315 | 1102 | 445 | 520 | 465 | 440 | 75*13-10 | 13*2 |
PYT-R0202 | 2-axles | ○127 | 1360 | 1194 | 445 | 550 | 465 | 440 | 75*13-10 | 13*2 |
PYT-R0203 | 2-axles | ○127 | 1232 | 1054 | 445 | 470 | 465 | 440 | 75*13-10 | 13*2 |
Item No.: | Axle Quantity | Axle Beam | L1 | L2 | L3 | L4 | H1 | H2 | H3 | Leaf Spring | Capacity |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (T) | ||
PYT-S0301 | 3-axles | □150 | 1315 | 1102 | 445 | 520 | 490 | 465 | 440 | 75*13-10 | 13*3 |
PYT-S0302 | 3-axles | □150 | 1360 | 1194 | 445 | 550 | 490 | 465 | 440 | 75*13-10 | 13*3 |
PYT-S0303 | 3-axles | □150 | 1232 | 1054 | 445 | 470 | 490 | 465 | 440 | 75*13-10 | 13*3 |
PYT-R0301 | 3-axles | ○127 | 1315 | 1102 | 445 | 520 | 465 | 440 | 415 | 75*13-10 | 13*3 |
PYT-R0302 | 3-axles | ○127 | 1360 | 1194 | 445 | 550 | 465 | 440 | 415 | 75*13-10 | 13*3 |
PYT-R0303 | 3-axles | ○127 | 1232 | 1054 | 445 | 470 | 465 | 440 | 415 | 75*13-10 | 13*3 |
